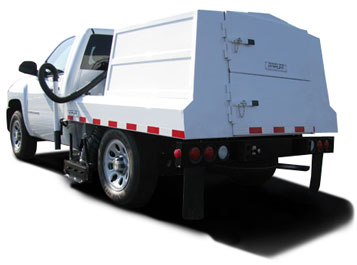

Complete with unitized body construction and a capacity of 2.5 yards. This high capacity sweeper has internal dust and screen separators considered to be the finest on the market. The interior and exterior of each unit is finished with extremely chip resistant polyester powder coating. Hoppers are fabricated of high yield, primed steel by AWS certified welders. Each unit has two large  43" X 19" dump doors with boomer style retainer latches.

The sweeping head is also constructed of high yield steel with adjustable tungsten carbide drag shoes. The sweeping head features include a 10" suction hose with an 8" blast hose, electronic actuated lift with two drag lengths and an overall length of 82". Skavinjer's sweeping head operates in either forward or reverse direction, perfect for parking lot sweepers.

The sweeper auxiliary engine is a "Kohler" Command Vertical V-Twin Cylinder, Model 25. This engine has a horsepower output of 25 and a displacement of 45; maximum torque of 40 @ 2200 RPM. The blower housing contains a six blade radial pressure turbine which has been electronically balanced.
